Results of Monocular Surgery Under Peribulbar Anesthesia for Large-Angle Horizontal Strabismus

OBJECTIVE:

To evaluate the results of monocular surgery under peribulbar anesthesia for large-angle horizontal strabismus.

INTRODUCTION:

Monocular surgery may preserve some muscles if a repeat operation is required, may help to avoid the exposure of the dominant eye to the inherent risks of a surgical procedure and may reduce surgical time.

METHODS:

We evaluated ninety-two consecutive patients who underwent monocular surgery under peribulbar anesthesia for large-angle horizontal strabismus (angle of 40 prism diopters or greater). Patients were divided into group 1- esotropia and group 2 –exotropia. The postoperative follow-up was at 6 months, when the residual deviation was evaluated. In cases of residual deviations of over 15 PD (prism diopter), a second procedure was indicated.

RESULTS:

In all patients with preoperative deviations up to 60 PD, residual deviations were under 15 PD. Some patients with preoperative deviations of 65 PD (two in group 1 and four in group 2) and all patients with deviations over 65 PD had residual deviations over 15 PD. The 13 patients who underwent a second procedure experienced successful outcomes. Our ROC curve analysis showed that the cutoff point for obtaining a successful surgical result was 62.5 PD. No patient presented with a major limitation in respect of ocular movement.

CONCLUSIONS:

Monocular surgery under peribulbar anesthesia can be an alternative for horizontal large-angle strabismus given deviations of up to 60 PD. Monocular surgery did not result in successful outcomes for deviations of over 65 PD.

INTRODUCTION

Binocular surgery is the most commonly used approach for surgical treatment of large-angle horizontal strabismus involving three or four horizontal rectus muscles. This procedure is widely used because it avoids significant limitations of ocular movement, which could occur in surgeries of greater magnitude.1–5 However, monocular surgery has many advantages, such as preserving some muscles if a repeat operation is required, avoiding the exposure of the dominant eye to the inherent risks of a surgical procedure and reducing surgical time.6–10

Furthermore, a monocular procedure can be performed in adults under peribulbar anesthesia, which is associated with decreased morbidity and mortality when compared with general anesthesia, and also offers swifter recovery and lower incidence rates of nausea and vomiting.11–19

The aim of this study was to evaluate the results of monocular surgery under peribulbar anesthesia for large-angle horizontal strabismus.

METHODS

Subjects

We evaluated the medical records of 92 consecutive patients who underwent monocular surgery under peribulbar anesthesia after January 2004 at the Department of Ophthalmology, University of Campinas (Campinas, SP, Brazil).

The inclusion criteria were:

• - Large-angle strabismus: defined, in this study, as an angle of deviation of 40 prism diopters (PD) or greater;

• - Primary strabismus, excluding all cases of paretic, restrictive or consecutive strabismus. Patients who had previously been administered botulinum toxin A to treat strabismus were also excluded.

• - Horizontal strabismus (esotropia or exotropia), excluding any cases with associated vertical deviation.

• - Follow-up data lasting at least 6 months.

Procedures

• 1.

  Complete ophthalmologic examination (best-corrected visual acuity measurement, biomicroscopy, tonometry and indirect ophthalmoscopy).

• 2.

  Measurement of angle of deviation

  The angle of strabismus was measured in prism diopters (PD), with the best optic correction, in all positions, for both distance and near vision. For patients with good bilateral visual acuity, this parameter was measured by the prism and cover test using a suitable fixation target. Patients with poor vision or profound amblyopia were submitted to Krinsky measurement, based on the corneal reflex. 20–22

  After evaluation of strabismus, the subjects were divided into group 1 (patients with esotropia) and group 2 (patients with exotropia).

• 3.

  Surgical planning and surgery

  The surgeries consisted of recession and resection and are described in Table 1 (group 1) and Table 2 (group 2). All patients underwent monocular surgeries in the nondominant eye.

  Table 1 -.

  Characteristics of group 1 (esotropia)

  Preoperative deviation (PD)	Nº	Age * (years)	Surgical procedure	Postoperative Deviation * (PD)
  40	7	27.14 ± 14.03	RC 5mm MR + RS 7mm LR	7.71 ± 3.73
  45	9	24.11 ± 6.95	RC 6mm MR + RS 7mm LR	5.11 ± 3.14
  50	5	28 ± 8.72	RC 6mm MR + RS 8mm LR	6 ± 3.74
  55	1	21	RC 6mm MR + RS 8mm LR	5
  60	4	21.75 ± 5.38	RC 6mm MR + RS 9mm LR	8,5 ± 1,91
  65	3	22.67 ± 1.53	RC 6mm MR + RS 9mm LR	18.33 ± 2.89
  70	5	23.8 ± 10.26	RC 6mm MR + RS 9mm LR	28 ± 6,71
  75	3	29.67 ± 14.36	RC 6mm MR + RS 9mm LR	28.33 ± 5.77
  80	3	36.33 ± 17.93	RC 6mm MR + RS 9mm LR	35 ± 0
  80	1	34	RC 6mm MR + RS 9mm LR	30
  90	1	19	RC 7mm MR + RS 9mm LR	35
  95	1	22	RC 8mm MR + RS 9mm LR	35
  100	1	31	RC 8mm MR + RS 9mm LR	55
  59.2 ± 16.63*	44	26.04 ± 9.85*		16.11 ± 13.29*

  *

  Mean ± standard deviation; Nº: number of patients; PD: prism diopter; RC: recession; RS: resection; MR: medial rectus; LR: lateral rectus; mm: millimeter
  Table 2 -.

  Characteristics of group 2 (exotropia)

  Preoperative Deviation (PD)	Nº	Age * (years)	Surgical procedure	Postoperative Deviation *(PD)
  40	9	31.44 ± 10.92	RC 7mm LR + RS 7mm MR	6.22 ± 1.85
  45	6	29.67 ± 7.97	RC 7mm LR + RS 7mm MR	8.67 ± 1.63
  50	8	34 ± 8.75	RC 8mm LR + RS 7mm MR	6.37 ± 4.40
  55	2	51 ± 9.89	RC 8mm LR + RS 8mm MR	10 ± 0
  60	10	28 ± 8.94	RC 8mm LR + RS 8mm MR	9.9 ± 5.52
  65	3	49.67 ±12.22	RC 8mm LR + RS 8mm MR	26.67 ± 2.89
  65	6	29.17 ± 7.14	RC 9mm LR + RS 8mm MR	11.67 ± 4.08
  70	1	36	RC 9mm LR + RS 8mm MR	25
  75	1	44	RC 9mm LR + RS 8mm MR	20
  80	2	35 ± 8. 48	RC 9mm LR + RS 8mm MR	30 ± 0
  54.79 ± 11.15*	48	32.54 ± 9.93*		11.10 ± 7.59*

  *

  Mean ± standard deviation, Nº: number of patients, PD: prism diopter, RC: recession, RS: resection, MR: medial rectus, LR: lateral rectus, mm: millimeter

  A successful result was defined by a postoperative angle of 15 PD or less.

• 4.

  Anesthesia

  Peribulbar anesthesia was performed by the ocular surgeon, and all patients received 5 mg of diazepam orally, thirty minutes before anesthesia. An intravenous line, oxygen nasal cannula, cardiac monitoring and continuous pulse oximetry were employed. The local anesthetic consisted of 0.5% bupivacaine without epinephrine and 2% lidocaine with epinephrine.

• 5.

  Follow-up

  Patients were examined at least on the first, seventh and thirtieth days and three and six months after surgery. Measurements of angles of deviation were recorded during all visits, but the data considered in this study were from the sixth postoperative month only.

• 6.

  Second surgical procedure

  In cases of residual deviations of over 15 PD in the sixth month, a second procedure in the dominant eye was indicated, and the follow-up continued until at least six months after the second surgery. All patients accepted the conditions when informed about the surgery and possible need for a second surgery.

Data analysis

The data were analyzed using the Mann-Whitney test for comparison of age and preoperative and postoperative angles of deviation between the groups; repeated-measures ANOVA (analysis of variance) for preoperative and postoperative comparisons; and ANCOVA’s (analysis of covariance) to adjust for covariates of age and type of deviation (esotropia or exotropia). The ROC curve (receiver operating characteristic) was used to define the cutoff point of preoperative angle of deviation for a successful outcome. A P value of <0.05 was considered statistically significant. The statistical analysis was performed using the SAS System for Windows (Statistical Analysis System), version 8.01, 1999–2000.

This study was approved by the Research Ethics Committee of the Faculty of Medical Sciences - University of Campinas, Campinas/SP, Brazil.

RESULTS

Forty-four patients had esotropia (group 1) and forty-eight had exotropia (group 2). The patients’ ages, as well as other data, such as preoperative angles of deviation, surgical procedures and postoperative deviations are shown in Tables 1 (patients with esotropia) and 2 (patients with exotropia).

All patients with preoperative deviation of up to 60 PD in both groups underwent successful surgeries (postoperative deviation of 15 PD or less in the sixth postoperative month). In patients with 65 PD preoperative deviations, one of three patients in group 1 and five of nine patients in group 2 underwent successful surgeries. All patients with deviations over 65 PD presented with a residual deviation of over 15 PD, which ranged from 20 to 55 PD in group 1, and from 20 to 30 PD in group 2.

A total of 25 patients exhibited residual deviations of over 15 PD, but only thirteen (52%) elected to undergo a second procedure, which turned out to be successful in all cases. The angle of deviation after the first surgical procedure, the second surgical procedure and the postoperative deviation six months after surgery are shown in Tables 3 (patients with esotropia) and 4 (patients with exotropia).

Table 3 -.

Group 1 patients (esotropia) who underwent a second procedure

Patient Nº	Age (years)	Deviation after first procedure (prism diopter)	Second surgical procedure	Deviation after second procedure (prism diopter)
1	18	25	RC 4 mm MR + RS 5mm LR	6
2	20	35	RC 5 mm MR + RS 6mm LR	10
3	21	35	RC 5 mm MR + RS 7mm LR	10
4	42	20	RC 6 mm MR	2
5	24	35	RC 5 mm MR + RS 7mm LR	8
6	25	35	RC 5 mm MR + RS 7mm LR	5
7	57	35	RC 5 mm MR + RS 7mm LR	6
8	27	35	RC 5 mm MR + RS 7mm LR	0
9	31	55	RC 6 mm MR + RS 9mm LR	10
Mean	29.44	34.44		6.33

RC: recession, RS: resection, MR: medial rectus, LR: lateral rectus, mm: millimeter.

No patient presented with severe limitations in respect of ocular movement. However, all patients who underwent the 8 mm recession of medial rectus in group 1 experienced some degree of limitation in ocular movement. In group 2, 6 of the 10 patients submitted to 9 mm recession of lateral rectus presented with some degree of limited ocular movement.

There were no complications from surgery or anesthesia in either group.

Based on the Mann-Whitney test, there was a statistically significant difference in age (group 1 was younger, p=0.026), but no difference in the preoperative angle of deviation (p=0.0512), the magnitude of surgical correction (p=0.6602) and the postoperative results (p=0.320). The preoperative deviations were significantly greater than the postoperative in both groups (ANOVA, p<0.0001). With ANCOVA, our analyses were adjusted for the variables of age and type of strabismus (esotropia or exotropia), and there were no statistically significant differences (p= 0.217).

The Spearman’s rank correlation coefficient showed no correlation between age and postoperative deviation (r = − 0.13360, p = 0.3047). There was a moderate correlation between preoperative and postoperative deviations (r = 0.43703, p = 0.0004).

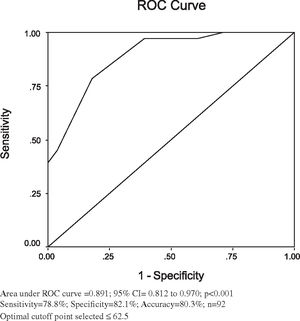

The ROC analysis (Figure 1) showed that the cutoff point of the preoperative angle for obtaining a successful surgery result was 62.5 PD. The sensitivity and specificity using this cutoff point, the estimated area under ROC curve and the 95% confidence interval are shown in Figure 1.

Figure 1 -.

ROC Curve

DISCUSSION

Most studies of surgical procedures in large-angle horizontal strabismus were conducted in congenital esotropia. Several authors reported high rates of success, from 70 to 91%, in large-angle congenital esotropia with large medial rectus recessions, and no significant adduction limitations.23–31 More recently, Vroman et al. and Prieto-Diaz and Souza-Dias also suggested that bilateral medial rectus recession was the preferred treatment for large-angle congenital esotropia.30,31 Other studies, however, suggest that interventions involving three or four muscles are more effective and avoid convergence injuries.3–5

Several studies of large-angle exotropia have reported success rates ranging from 72% to 80% in bilateral lateral rectus recessions, without significant abduction limitations.6–10 Berland et al. reported a success rate of 80% with a 8 to 9 mm bilateral lateral rectus recession, but with abduction limitations in 30% of the 24 patients studied.6 Bracamontes et al. supported bilateral surgery in large-angle exotropias in patients with low vision in one or both eyes, because the relapse rate is higher with monocular surgery.32 However, Currie et al. suggested that interventions involving three or four muscles in large-angle exotropias are more effective than surgery involving only two muscles.2

The ROC analysis was used to define the cutoff point of the preoperative deviation, in order to achieve a successful result (≤ 62.5 PD) corresponding to the area under the curve with a 95% confidence interval. We identified no differences between groups 1 and 2 because the ANCOVA test did not show any influence of the type of strabismus on the postoperative result. There have been no other studies to date that have estimated a cutoff point in terms of the preoperative deviation needed to achieve a successful outcome in monocular surgery for large-angle strabismus.

Our results show that, after the second procedure, the residual deviations achieved results of 10 PD or less, suggesting that strabismus with a preoperative angle of deviation of 65 PD or greater (Tables 3 and 4) exhibited the best outcomes following binocular approaches.

Table 4 -.

Group 2 patients (exotropia) who underwent a second procedure

Patient Nº	Age (years)	Deviation after first procedure (prism diopter)	Second surgical procedure	Deviation after second procedure (prism diopter)
1	30	25	RT RL 5mm RS RM 5mm	4
2	54	30	RT RL 7mm RS RM 6mm	0
3	38	25	RT RL 5mm RS RM 5mm	−4
4	36	25	RT RL 4mm RS RM 5mm	5
Mean	39.5	26		1.25

RC: recession, RS: resection, MR: medial rectus, LR: lateral rectus, mm: millimeter.

Ocular movement may be limited in major recessions and in patients with good bilateral visual acuity; these limitations may cause damage in terms of the convergence amplitude. Most authors recommend not exceeding 7 mm medial rectus recession and 8 mm lateral rectus recession to avoid ocular movement limitations. In this study, only 8 mm medial rectus recession in group 1 and 9 mm lateral rectus recession in group 2 were associated with some degree of limitation. These results confirm the conclusions from other studies, all of which recommend avoiding large recessions.29, 31

The effects of peribulbar anesthesia in terms of surgical results have been previously reported by our group. Our published studies compared the postoperative results of strabismus surgery performed under peribulbar and general anesthesia and confirmed that the type of anesthesia used did not impact the surgical results.33,34 The disadvantages of this type of anesthesia include reduced globe mobility, which causes problems in analyzing passive stiffness. Ocular complications of peribulbar anesthesia include globe perforation, retrobulbar hemorrhage, ptosis, optic nerve injury and central retinal artery occlusion35,36 However, these complications are rare and occurred only in 0.006% of 16,224 consecutive peribulbar block cases in a multicenter study.36

CONCLUSIONS

Monocular surgery under peribulbar anesthesia can be a viable alternative for large-angle horizontal strabismus for patients who present deviations of up to 60 PD. Monocular surgery did not result in acceptable outcomes for deviations of over 65 PD.
